AND DOORS

PVC Window Systems

70 PVC.jpg

VP-70 PVC

PROFILE Installation depth: 70 mm, highest A class

CONSTRUCTION A 5-chamber profile of the outside wall depth of 2,8 mm, seamless welding

COLOUR White, wood-imitating, solid veneers according to the RAL range

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Two replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,9 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

*applies to the reference window 1,23 m x 1,48 m

Ug = 0,6 W/m2K


74 PVC.jpg

VP-74 PVC

PROFILE Installation depth: 74 mm

CONSTRUCTION A 6 -chamber profile, seamless welding

COLOUR White, wood-imitating, solid veneers according to the RAL range, anteak

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Two replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,79 W/m2K*

ACOUSTIC ISOLATION - up to 44 dB

RESISTANCE CLASS - RC2

* applies to the reference window 1,23 m x 1,48 m

Ug = 1,0 W/m2K





82 PVC.jpg

VP-82 PVC

PROFILE Installation depth: 82 mm, highest A class

CONSTRUCTION A 7-chamber frame construction of the outside wall depth of 2,8 mm, seamless welding

COLOUR Ultra-matte, white, wood-imitating, solid veneers according to the RAL range

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Three replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,77 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

*applies to the reference window 1,23 m x 1,48 m

Ug = 0,5 W/m2K


83 PVC.jpg

VP-83 LX PVC

PROFILE Installation depth: 83 mm

CONSTRUCTION A 6 -chamber frame construction, seamless welding

COLOUR White, wood-imitating, solid veneers according to the RAL range, acrylcolor, anteak

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Three replaceable seals

PROPERTIES

THERMAL INSULATION - Uw=0,80 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

*applies to the reference window 1,23 m x 1,48 m

Ug = 0,5 W/m2K


87 PVC.jpg

VP-87 PVC

- Aluminum

PROFILE Installation depth: 82/87 mm, highest A class

CONSTRUCTION A 7-chamber frame construction of the outside wall depth of 2,8 mm, seamless welding

PVC COLOUR White, wood-imitating, solid veneers according to the RAL range

ALUMINUM COLOUR Special colors chart

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Three replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,77 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

*applies to the reference window 1,23 m x 1,48 m

Ug = 0,5 W/m2K



Window Colour Options

Screenshot 2019-08-09 at 08.19.08.png
Screenshot 2019-08-09 at 08.19.17.png
Screenshot 2019-08-09 at 08.19.27.png


Door Handle Options

Screenshot 2019-08-09 at 08.31.26.png

Wood Window Systems

68 WOOD.jpg

VD-68 WOOD

PROFILE Installation depth – 68 mm

CONSTRUCTION A single-frame construction of the casement and frame depth of 68 mm

COLOUR Transparent or solid colors according to the RAL range

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Three replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 1,25 W/m2K*

ACOUSTIC ISOLATION - up to 44 dB

*applies to the reference window 1,23 m x 1,48 m

Ug = 0,6 W/m2K



78 WOOD.jpg

VD-78 WOOD

PROFILE Installation depth: 78 mm

CONSTRUCTION A single-frame construction of the casement and frame depth of 78 mm

COLOUR Transparent or solid colors according to the RAL range

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Three replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,86 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

*applies to the reference window 1,23 m x 1,48 m

Ug = 1,0 W/m2K


92 WOOD.jpg

VP-92 WOOD

PROFILE Installation depth: 92 mm

CONSTRUCTION A single-frame construction of the casement and frame depth of 92 mm

COLOUR Transparent or solid colors according to the RAL range

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Three replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,76 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

*applies to the reference window 1,23 x 1,48 m

Ug = 0,5 W/m2K



Wood Finish Options

Wood Window Colour.jpg


Handle Options

Screenshot 2019-08-09 at 11.13.11.png

Wood-Aluminum

Window System


94 WA.jpg

VDA-94 WOOD-ALUMINUM

PROFILE Installation depth: 78/94 mm

CONSTRUCTION A combination of wood and aluminum

WOOD COLOUR Transparent or solid colors according to the RAL range

ALUMINUM COLOUR Anodized or varnished colours, special colors chart

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Designo fitting, RC2 anti-burglar, Tilt-First

SEALS Four replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,81 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

*applies to the reference window 1,23 m x 1,48 m

Ug =0,5 W/m2K

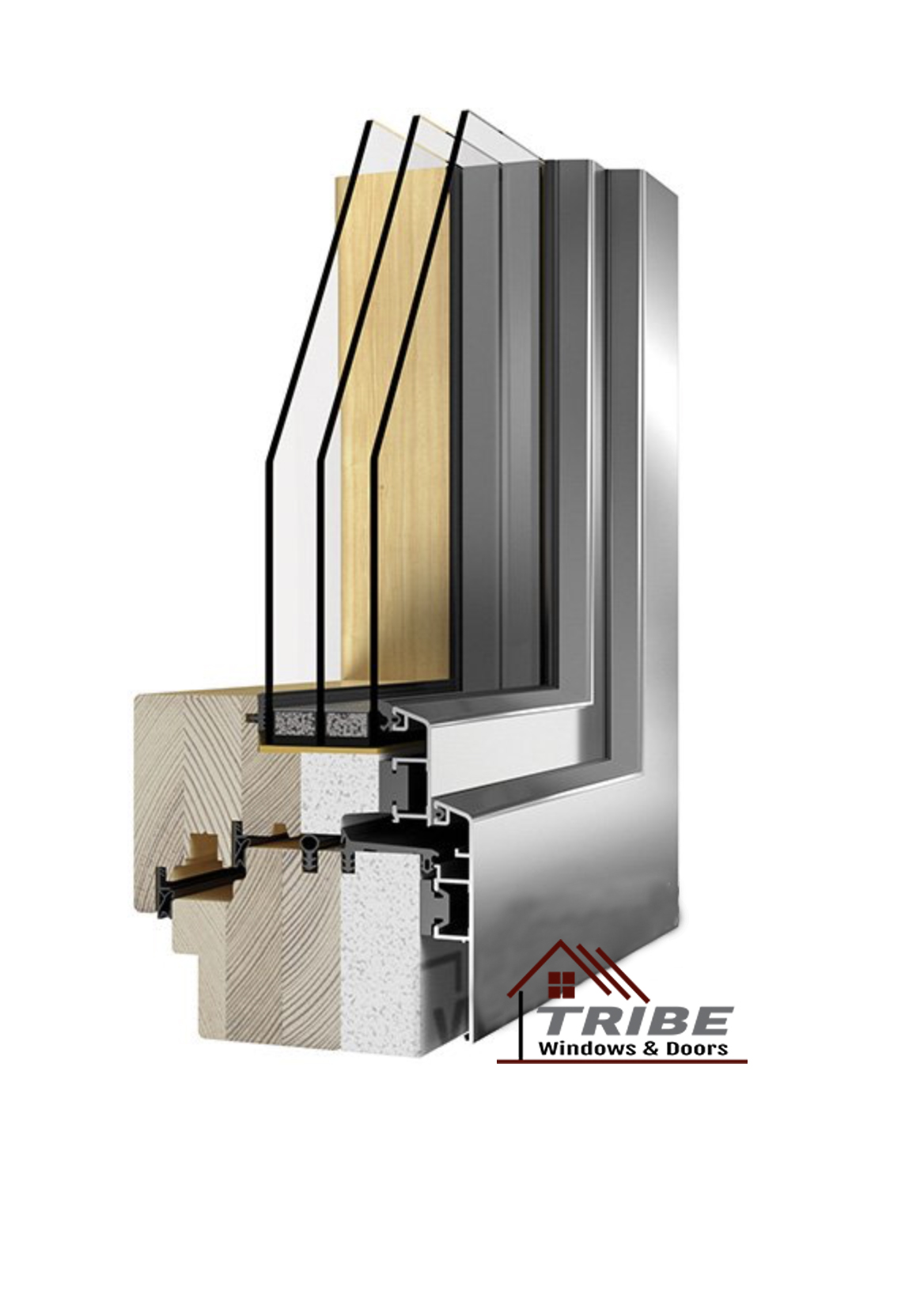

116 WA.jpg

VDA-116 Passive WOOD-ALUMINUM

PROFILE Installation depth: 116 mm

CONSTRUCTION A combination of wood and aluminum with innovative isolation materials, it fulfils the requirements of passive construction

WOOD COLOUR Transparent or solid colors according to the RAL range

ALUMINUM COLOUR Anodized or varnished colours, special colors chart

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Five replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = ,67 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

* applies to the reference window 1,23 m x 1,48 m

Ug = 0,5 W/m2K



Aluminum Window Systems


94 WA.jpg

VDA-86 AERO ALUMINUM

PROFILE Installation depth: 78/94 mm

CONSTRUCTION A combination of wood and aluminum

WOOD COLOUR Transparent or solid colors according to the RAL range

ALUMINUM COLOUR Anodized or varnished colours, special colors chart

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Four replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = 0,81 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

*applies to the reference window 1,23 m x 1,48 m

Ug =0,5 W/m2K


116 WA.jpg

VDA-116 Passive WOOD-ALUMINUM

PROFILE Installation depth: 116 mm

CONSTRUCTION A combination of wood and aluminum with innovative isolation materials, it fulfils the requirements of passive construction

WOOD COLOUR Transparent or solid colors according to the RAL range

ALUMINIUM COLOUR Anodized or varnished colours, special colors chart

FITTINGS Multi-point locking fittings of an increased anti-corrosion protection, optional Design fitting, RC2 anti-burglar, Tilt-First

SEALS Five replaceable seals

PROPERTIES

THERMAL INSULATION - Uw = ,67 W/m2K*

ACOUSTIC ISOLATION - up to 48 dB

RESISTANCE CLASS - RC2

* applies to the reference window 1,23 m x 1,48 m

Ug = 0,5 W/m2K
